PAIR / EVAP Delete

As this is my track bike build I am going to delete the PAIR System and the EVAP system entirely.

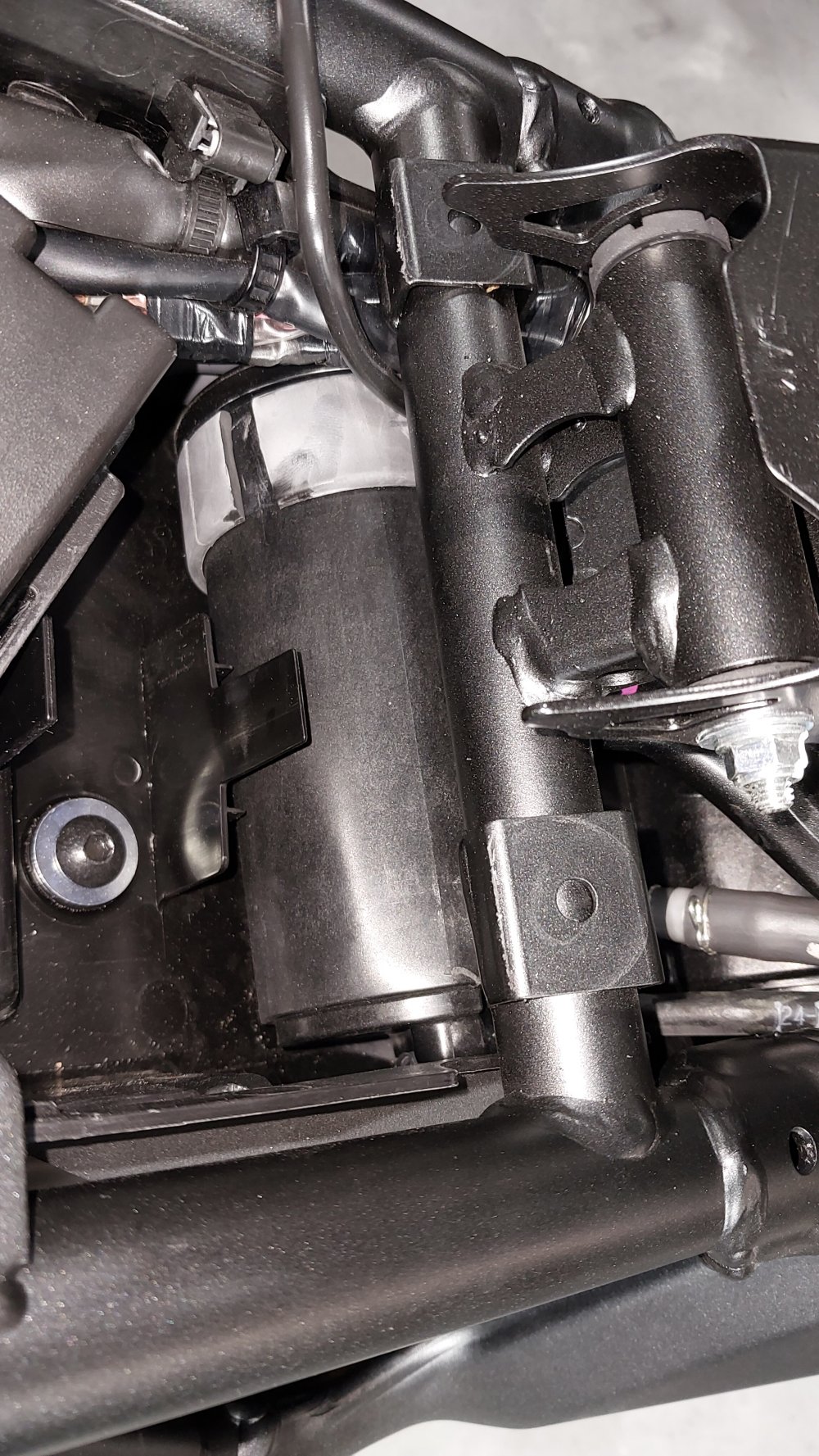

This will be done in 2 stages: The first stage is the EVAP canister that directly under the rider seat and just under the back of the fuel tank.

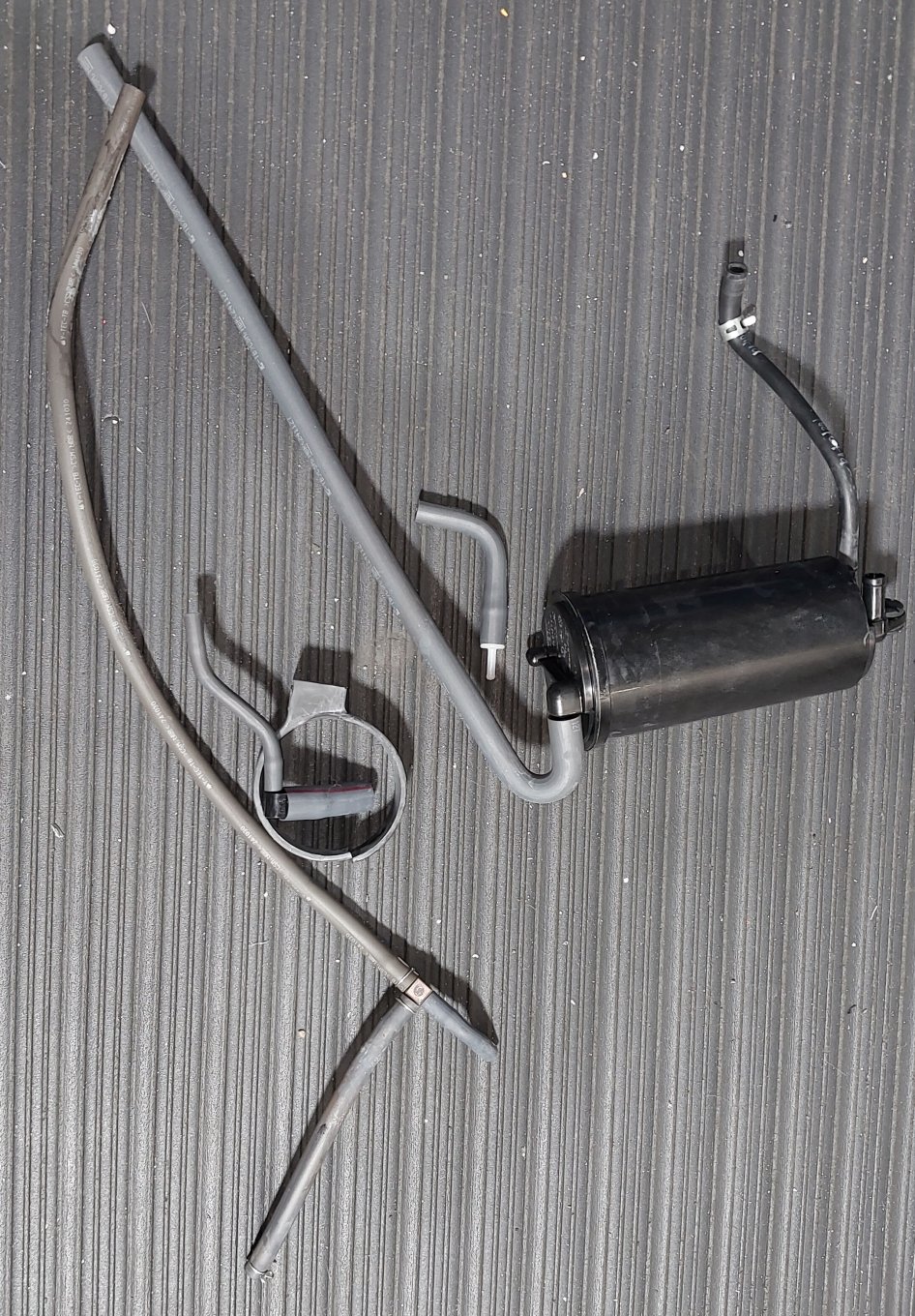

Once everything is removed you get a pile just like this:

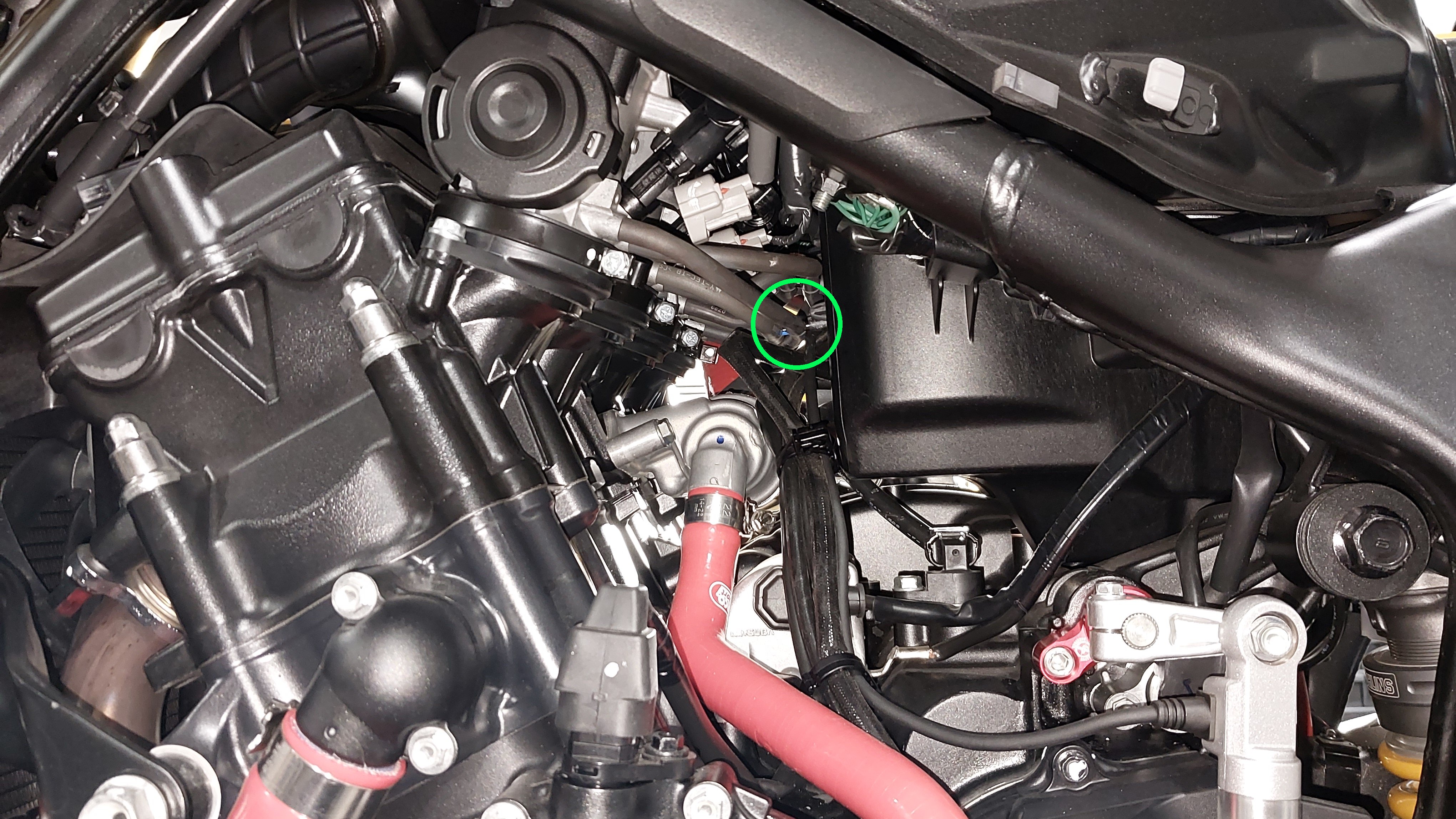

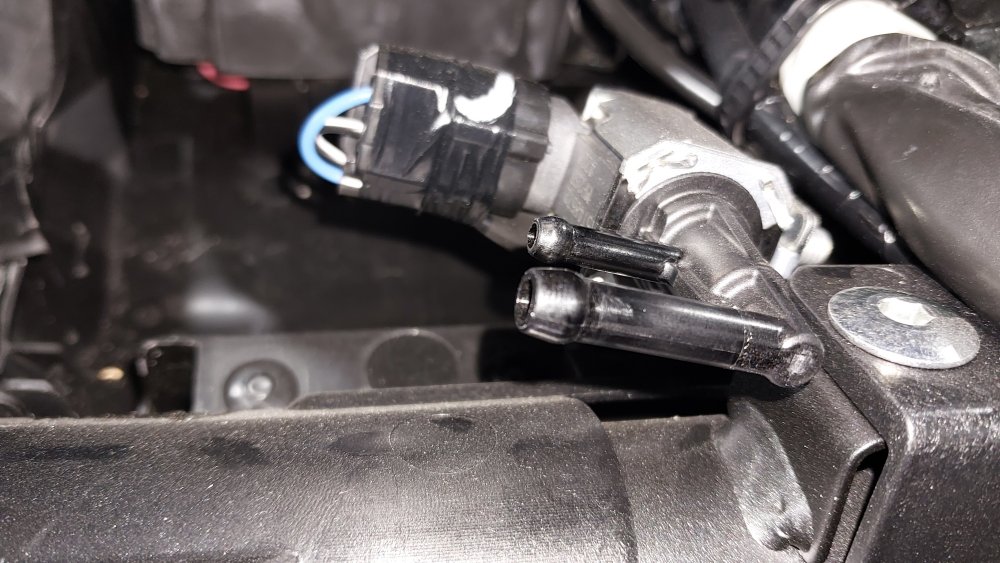

Unless you have specifically flashed the ECU to remove the requirements for the EVAP system you must leave the Solenoid plugged into the Harness.

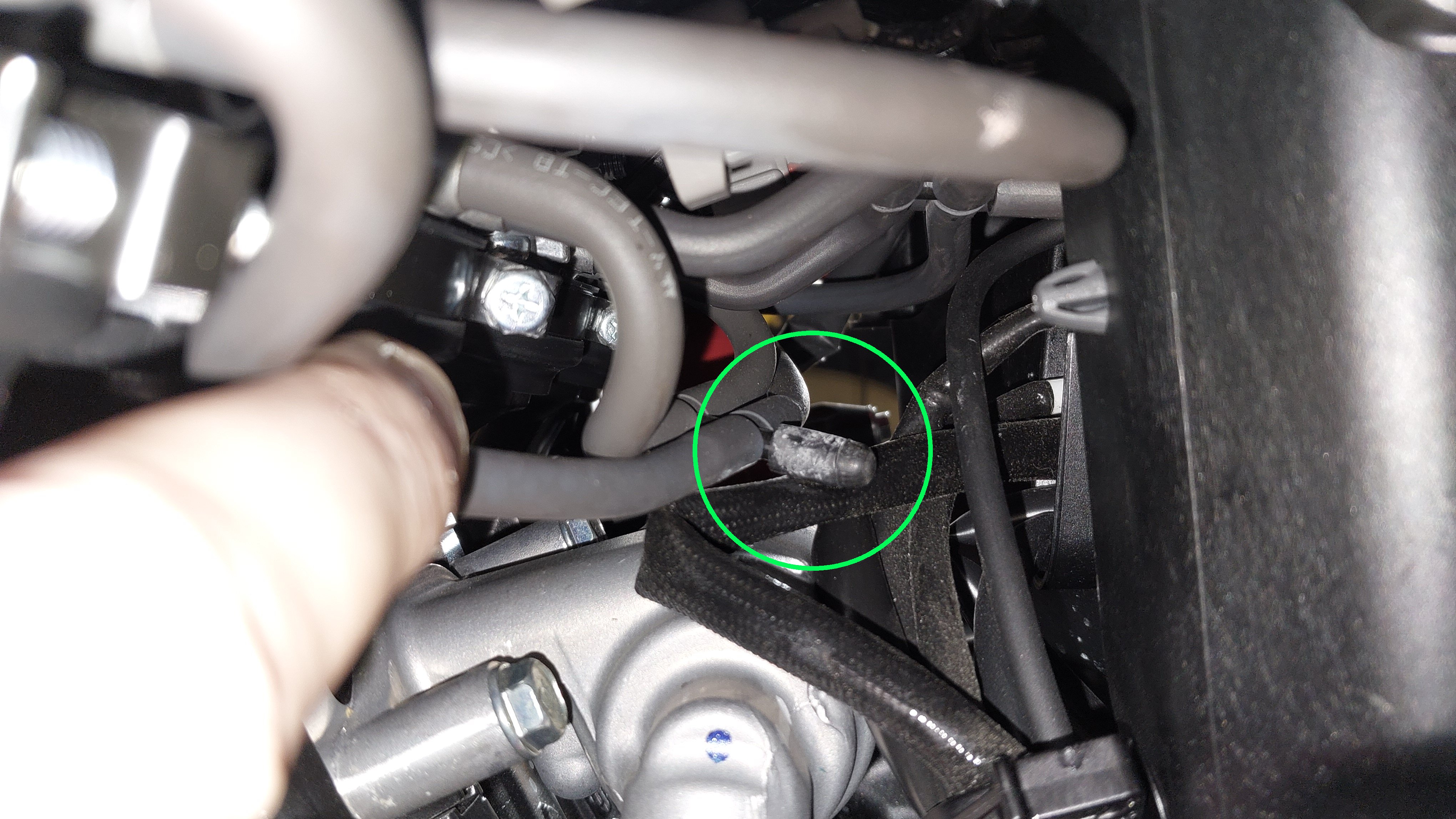

If you are going to remove the small line then you must also follow it from solenoid up to the throttle bodies and cap the adapter that branches out into 4 more lines






PAIR DELETE COMING SOON
